Automated testing station
2工位壓力調節器全自動在線測試臺

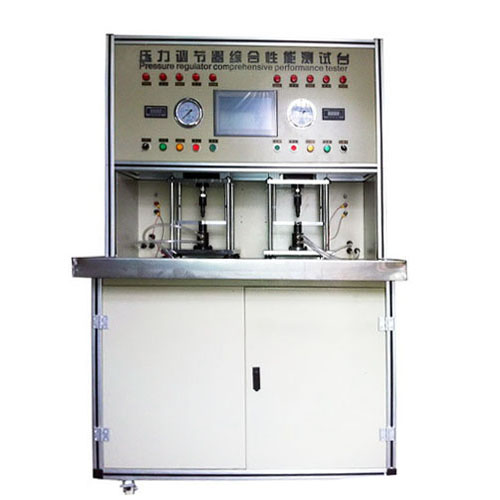

Two-station line pressure regulator automatic test bench






Introductory description

Name
Specifications
deep * width * high
Equipment formulated
The main function
pressure regulator automatic online test bed [duplex]
760 * 1200 * 1890
1, the control system
CRE uses its proprietary detection dedicated control HC3U series PLC, touch screen.
2, sampling element:
flow, pressure, current and voltage.
Actuators: Solenoid valve (SMC)
3, servo precision pressure regulator gate developed by the company's stainless steel valve 304 fine
1, the impact test: the impact of the number of on-time impact, the impact of off time
2, the regulator test: 12V flow, 12V pressure, 8V flow, 8V pressure
3, the pressure adjustment: 12V voltage according to the set under pressure autohinter pressure valve [using servo or stepper regulator]
  1. holding pressure test: packing performance test voltage of 12V;
  2. Stepping tune presses to qualified value; automatic PID control;
6, data can be stored in addition to the above process export
manual loading, the detection and determination is fully automatic. Duplex design
